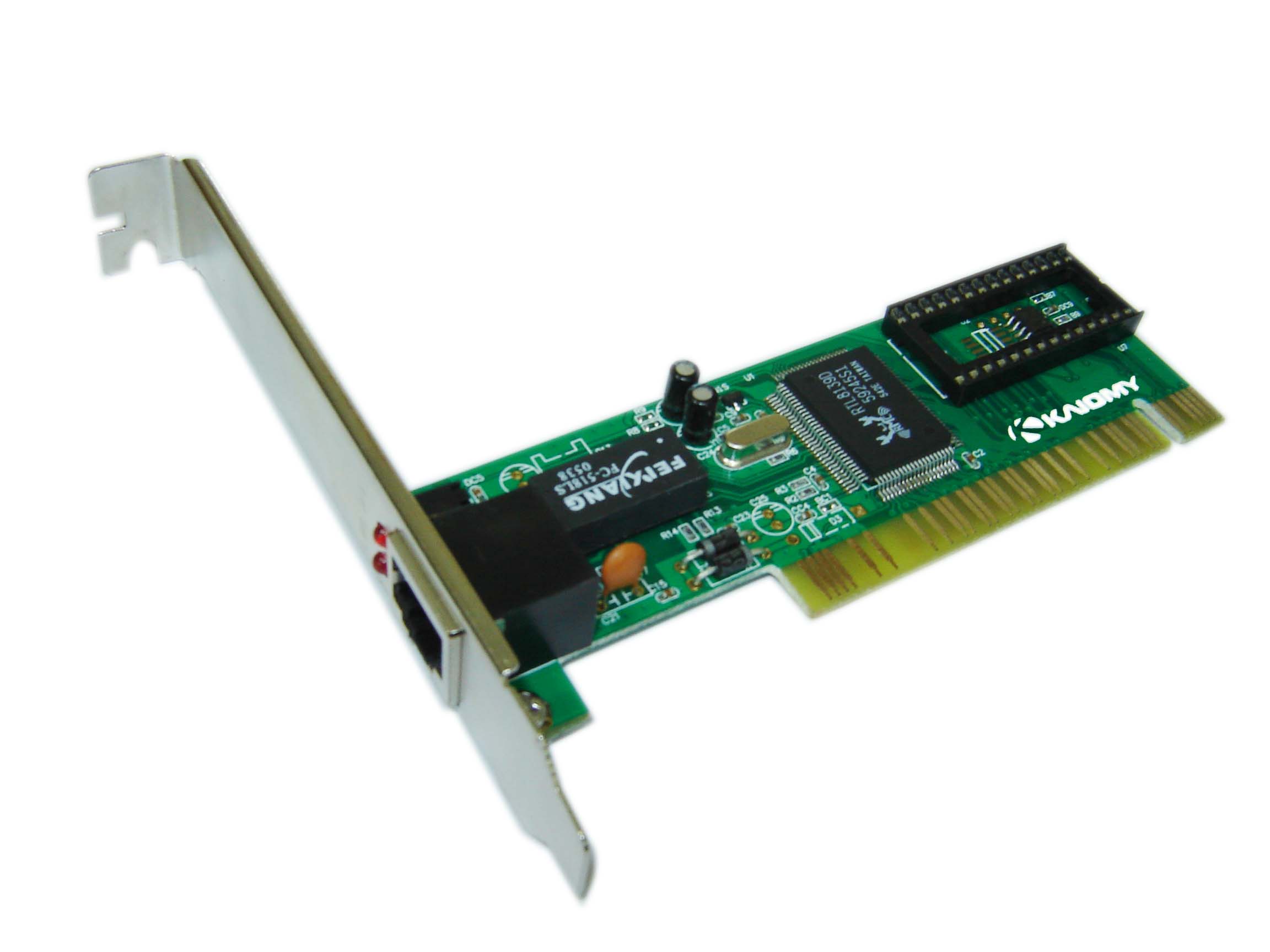

REALTEK RTL8139D chipset
Provides 32-bit PCI interface
10 Mb/s and 100 Mb/s operations
Supports 10 Mb/s and 100 Mb/s N-way Auto-negotiation
operation
Compliant to PCI Revision 2.2
Supports ACPI, PCI clock 16.75MHz-40MHz
Complies with IEEE802.3, IEEE802.3u standards
Compliant to PC99 standard
Supports Wake-On-LAN function and remote wake-up (Magic
packet, LinkChg and Microsoft wake-up frame)
Supports auxiliary power-on internal reset, to be ready for
remote wake-up when main power still remains off
Contains two large (2Kbyte) independent receive and transmit
FIFO’S
Supports digital and analog loop back capability on both ports
Supports Full Duplex and Half Duplex transfer modes
Provides BOOTROM socket
One LED indicator for monitoring link/activity
Supports drivers for NetWare 3.x, 4.x, Windows 98, Windows
Me, Windows NT4.0, Windows 2000, Windows XP, Linux 2.4.x (in
Fact, NO Driver is needed for windows ME 2000,XP)
