Home > Products > Communication Series
Communication

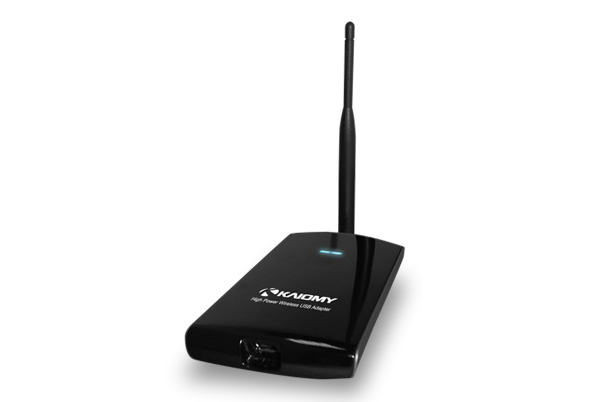

Product No.: 05-WA300U600E
Model No.: WA-300U600 Extreme
Overview :

300 Mbps 802.11 B/G/Lite-N, Wireless USB Adapter, Realtek Chipsets, 5 dBi Detachable Antenna, 600mW



| Specification |
Feature:

l      Standard

:

IEEE 802.11n Draft 2.0

IEEE 802.11g/b

l      Frequency Band

:

2.400GHz ~ 2.484GHz

l     Data Rate



:

802.11n(40MHz): up to

150/300Mbps

802.11n(20MHz): up to 72/144Mbps

802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps

802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back



l     Number of operation channel

:

2.412~2.462GHz (Canada, FCC) / 11 Channels

2.412~2.484GHz (Japan, TELEC) / 14 Channels

2.412~2.472GHz (Euro, ETSI) / 13 Channels



l     Sensitivity





:

-89dBm @ 802.11n

-90dBm @ 802.11g

-93dBm @ 802.11b

l     Security





:

64/128bit WEP

WPA(TKIP with IEEE 802.1x)

WPA2(AES with IEEE 802.1x)

WPA Mixed

l       Access Protocol



:

CSMA/CA

l     Driver support

:

Windows® 2000, XP 32/64, Vista 32/64

l     RF Output Power(Typical)



:

802.11b: up to 28 ± 1 dBm

802.11g: up to 23 ± 1 dBm

802.11n: up to 21 ± 1 dBm

l     Interface

:

Mini -USB

l      Antenna

:

One detachable 5 dbi antenna (SMA connector)

l       Operation Voltage

:

5V

l      Dimension(mm)

:

99(L) x 60(W) x 16(H)

l      Operation Temperature

:

0°C ~ 60°C

l      Storage Temperature

:

-20°C ~ 70°C ambient temperature

l     Storage Humidity

:

10% ~ 90% (Non-condensing)
