Features |
Compliant with the IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX specifications |

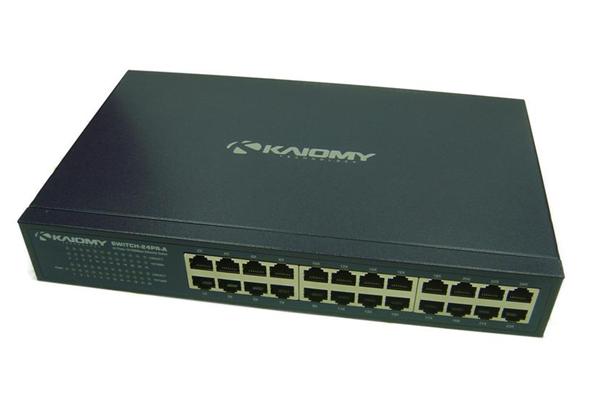

24 port 10/100Mbps TX Auto-Negotiation Ethernet Switch |
Full/Half-Duplex capability on each TX port |
Supports TP interface Auto MDIX function for auto TX/RX swap |
Automatic Source MAC Address Learning and Aging |
Supports up to 8K MAC addresses |
Up to 1.25M bits buffer |
Supports Store & Forward architecture and performs forwarding and filtering |
Broadcast Storming Filter function |
IEEE802.3x flow control for Full-duplex |
Back Pressure function for Half-duplex operation |
Supports to handle up to 1552 bytes packet |
LED indicators for simple diagnostics and management |
Plug and Play |
